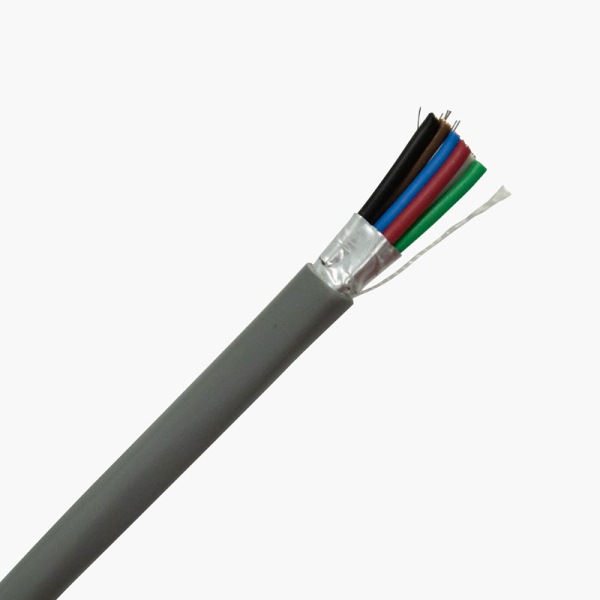

Paige 455304FE 18AWG-6C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code: 1-Black, 2-White, 3-
       Red, 4-Green, 5-Brown, 6-Blue

 3. Cabling Overall Lay

 3.1 3 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .015”
 6.3 OD: .227” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE 455304FE 18 AWG 6C SHIELDED c(UL)us TYPE CMR 300V 75C
       E191596 ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 DC Resistance: 6.5 ohms/M ft.
 7.2 Voltage: 300 Volts
 7.3 Capacitance: 27 pF/ft.

 Scope:

 This cable consists of 6 conductors 18 AWG stranded bare copper; color-coded Polypropylene insulation;
 overall aluminum mylar shield with drain wire; overall PVC jacket.
 RoHS Compliant
