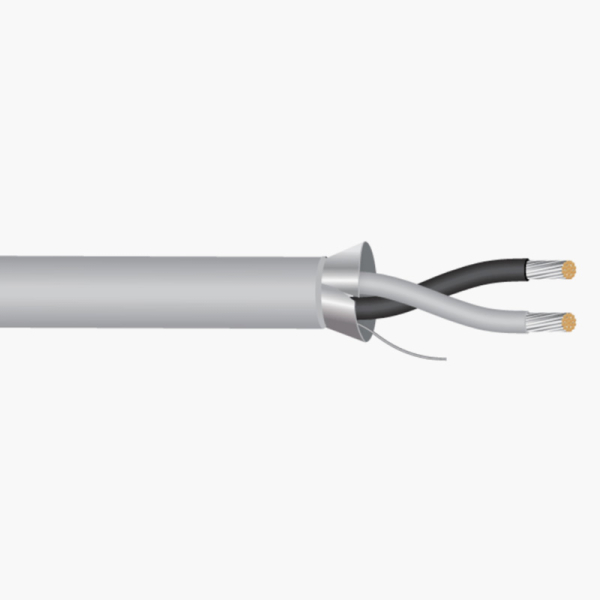

Paige 458761, 2 Core 22 AWG Stranded Tinned Copper, Overall Shielded

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .016” nom.
 2.3 Color code:
               1-Black
               2-Clear

 3. Shield

 3.1 Material: Aluminum Mylar
 3.2 Coverage: 100%

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 22 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: PVC
 5.2 Wall Thickness: .025” nom.
 5.3 OD: .173” nom.
 5.4 Color: Chrome Gray
 5.5 Ripcord under jacket
 5.6 Markings: PAIGE #458761 E191596 22 AWG 2C (UL) CM C(UL)US 75’C or UL AWM 2092
       300V 60’C ROHS MADE IN USA (Ascending/Descending footage markings

 6. Electricals

 6.1 Impedance: 81.0 ohms +/-10%
 6.2 Capacitance: 18.8 pF/ft. +/-10%
 6.3 DC Resistance: 16.6 ohms/M ft. @ 20oC

 Scope

 This cable consists of 2 conductor 22 AWG stranded tinned copper; color-coded Polyethylene insulation; overall

 aluminum Mylar shield with drain wire; overall PVC Jacket.

 Type CM c(UL)us or AWM Style 2092

 RoHS Compliant
