Paige 455200FE 16AWG-2C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
                  1-Black
                  2-Red

 3. Cabling Overall Lay

 3.1 3” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .015”
 6.3 OD: .180” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE 455200FE 16 AWG 2C SHIELDED (UL) TYPE CMR c(UL) TYPE CMG
       E191596 ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 Capacitance CDR: 58 pF/ft.
 7.2 Voltage: 300 Volts
 7.3 DC Resistance: 4.0 ohms/M ft.

 Scope

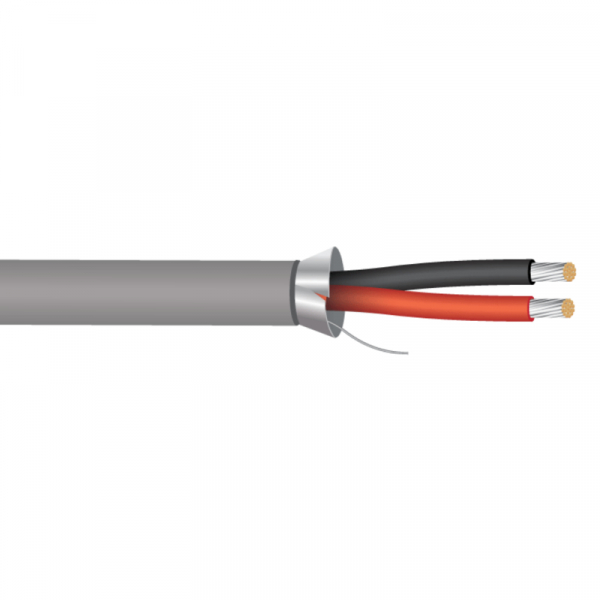

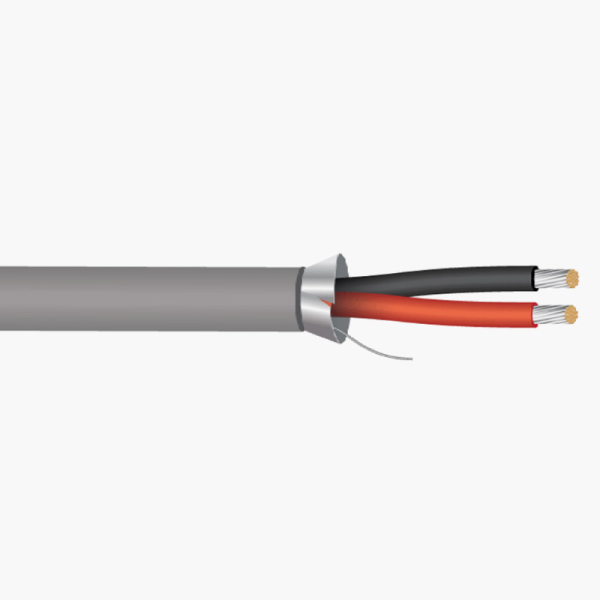

 This cable consists of 2 conductors 16 AWG stranded bare copper; color-coded Polypropylene insulation;

 overall aluminum Mylar shield with drain wire; overall PVC jacket. RoHS Compliant
