Paige 454625LSZH 18AWG-2C Stranded, Shielded

AED 456.75 AED 525.00
-13%
-13%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige454625LSZHConfig

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Stranding: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color Code: Black, Red

 3. Assembly

 3.1 Lay Length: 2.00” LHL
        (6.0 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain wire

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Stranding: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero
 6.2 Halogen Polyolefin
 6.3 Wall Thickness: .020”
 6.4 O.D.: .172” nom.
 6.5 Color: Gray
 6.6 Ripcord: Yes
 6.7 Markings: PAIGE #454625LSZH 18AWG 2/C SHLD 75’C 300V
       LSZH ROHS II COMPLIANT MADE IN USA
       (Ascending/Descending footage markers)

 7. Electricals

 7.1 Voltage: 300 Volts max.
 7.2 Capacitance: 31.7 pF/ft. +/- 10%
 7.3 Impedance: 48.6 ohms +/- 10%
 7.4 DC Resistance: 6.60 ohms/M ft.@ 20oC

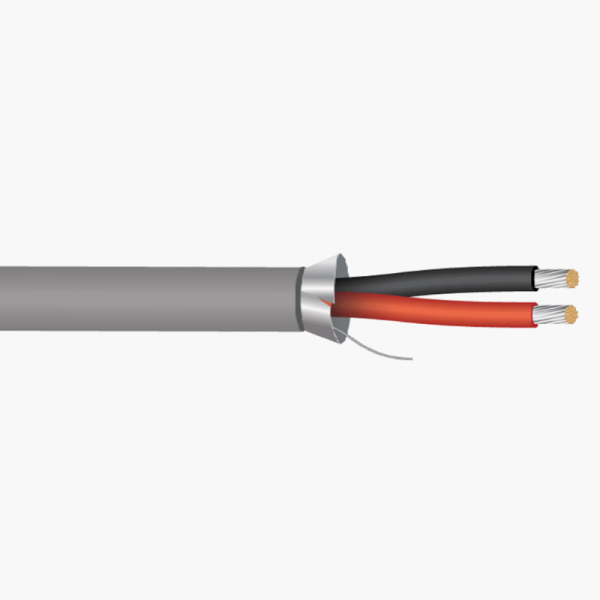

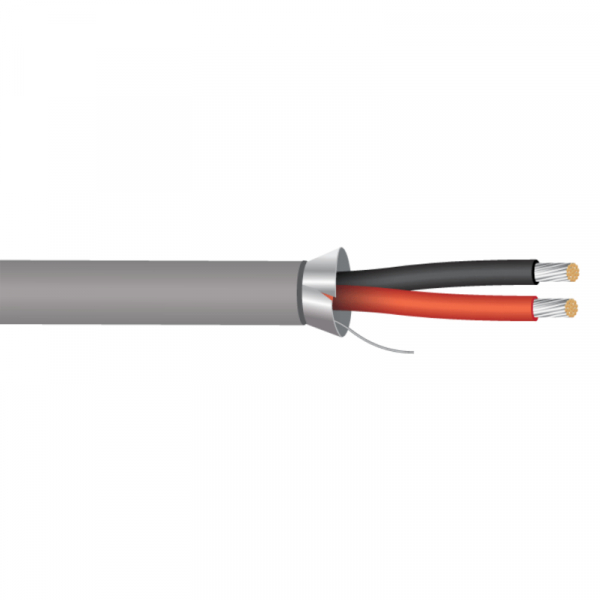

 This cable is composed of 2 conductors 18 AWG stranded bare copper conductor insulated
 with Polyethylene and cabled with an aluminum mylar tape and a stranded tinned copper drain
 wire. A low smoke Zero Halogen Polyolefin jacket completes the package. ROHS II & REACH Compliant.



 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
