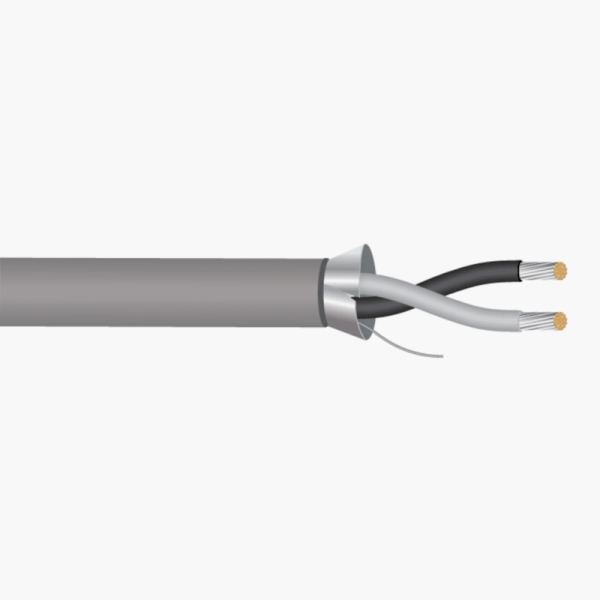

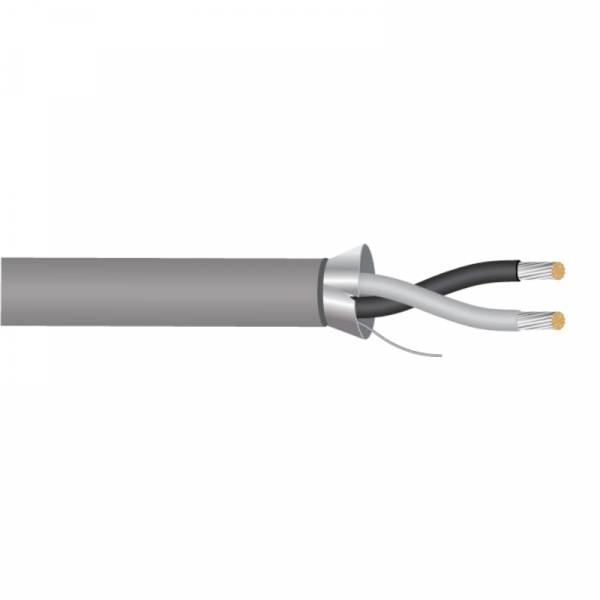

Paige 4500819NH 20AWG-1 Pair Solid, Shielded, LSZH EIB Cable

AED 410.97 AED 483.00
-15%
-15%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige4500819NHConfig

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 20 AWG
 1.3 Construction: Solid

 2. Insulation

 2.1 Material: Low Smoke Zero Halogen Polyolefin
 2.2 Wall Thickness: .012”
 2.3 Color code:
              1-Red x Black

 3. Assembly

 3.1 Cable Lay Length: 1.75” LHL (6.86 Tw/ft)
 3.2 Wrap: Clear Mylar Tape
        Coverage: 100%

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 26 AWG
 5.3 Construction: Solid

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .043”
 6.3 OD: .203” nom.
 6.4 Color: Green
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #4500819NH 20AWG 1PR SHIELDED 75’C 300V LSZH ROHS II
       COMPLIANT MADE IN USA (Ascending/Descending footage markings)

 7. Electricals

 7.1 Impedance: 48 ohms +/- 10%
 7.2 Capacitance: 39.0 pF/ft. +/- 10%
 7.3 DC Resistance: 10.06 ohms/M ft. @ 20oC
 7.4 Voltage: 300V max.





 Scope

 This cable consists of 1 pair 20 AWG solid bare copper; color-coded low smoke Zero Halogen Polyolefin
 insulation; overall aluminum Mylar shield with drain wire; overall low smoke Zero Halogen Polyolefin jacket.



 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
