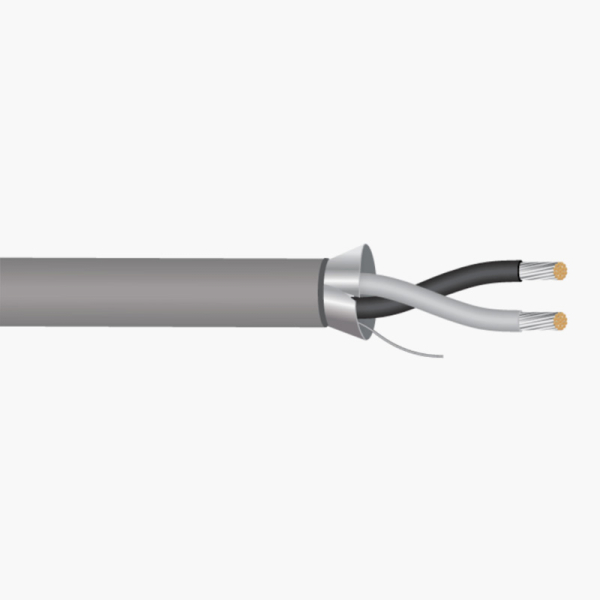

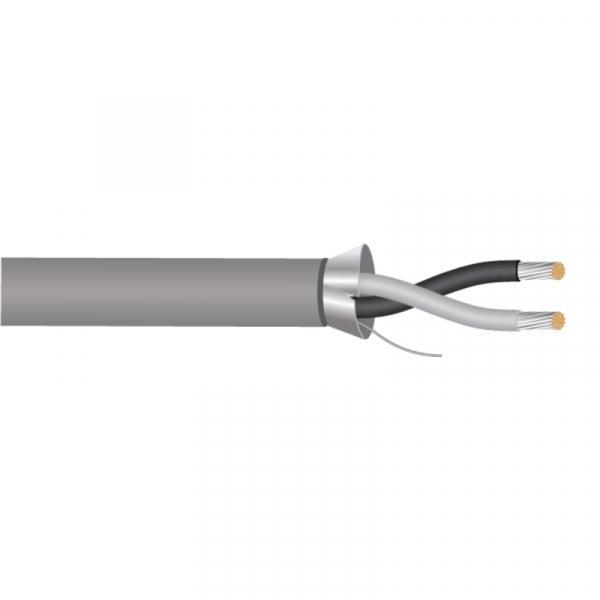

Paige 458760, 2 Core 18 AWG Stranded Tinned Copper, Overall Shielded, Roll of 305 MTR

AED 593.51 AED 619.50
-4%
-4%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige458760Config

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 18 AWG
 1.3 Construction: 16 Strand

 2. Insulation

 2.1 Material: Low Density
        Polyethylene
 2.2 Wall Thickness: .018”
 2.3 Color code:
       1-Black
       2-Clear

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. SHIELD

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 20 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .028”
 6.3 OD: .224” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #458760 18 AWG 1PR SHIELDED (UL) TYPE CL2 OR c(UL)us TYPE
       CM E191596 AWM STYLE 2092 300V
       ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 Voltage: 300 Volts
 7.2 Capacitance: 27.2 pF/ft.
 7.3 DC Resistance: 6.5 ohms/M ft.



 Scope:

 This cable consists of 1 pair 18 AWG stranded tinned copper; color-coded low density Polyethylene insulation;
 overall aluminum mylar shield with drain wire; overall PVC jacket.
 RoHS Compliant



 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :

More Information
product brand PAIGE
