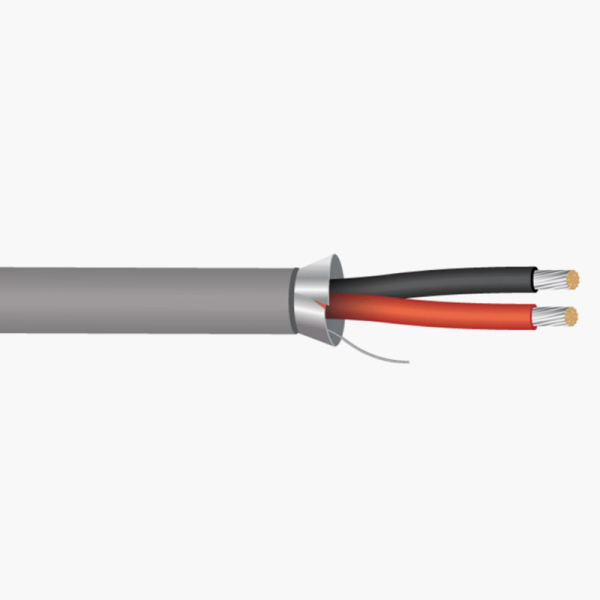

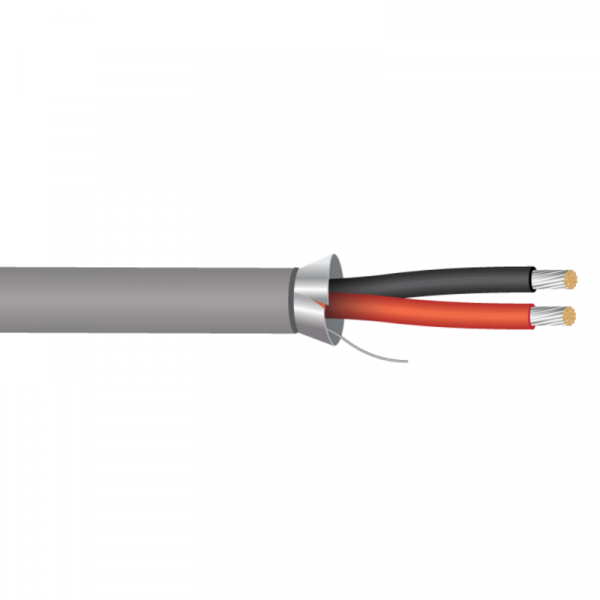

Paige 458760NH, 2 Core 18 AWG Stranded Tinned Copper, Overall Shielded- LSZH, Roll of 305 MTR

AED 622.44 AED 682.50
-9%
-9%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige458760NHConfig

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 18 AWG
 1.3 Construction: 16 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .018”
 2.3 Color code:
               1-Black
               2-Clear

 3. Assembly

 3.1 Lay Length: 2.50” LHL
       (4.80 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 20 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen
       Polyolefin
 6.2 Wall Thickness: .028”
 6.3 OD: .223” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #458760NH LSZH 18AWG 2/C SHLD 75C 300V ROHS COMPLIANT
       MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 DC Resistance: 6.4 ohms/M ft.@ 20oC
 7.2 Impedance: 64 ohms +/- 10%
 7.3 Capacitance: 23.8 pF/ft. +/- 10%
 7.4 Voltage: 300 Volt



 Scope

 This cable consists of 2 conductors 18 AWG stranded tinned copper; color-coded Polyethylene insulation;

 overall aluminum Mylar shield with drain wire; overall low smoke zero halogen

 Polyolefin jacket.

 RoHS Compliant

 Application

 Communication Cable



 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :

More Information
product brand PAIGE
