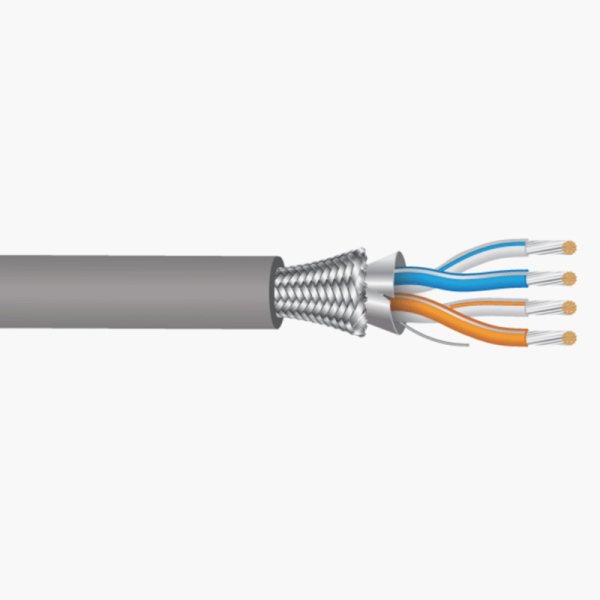

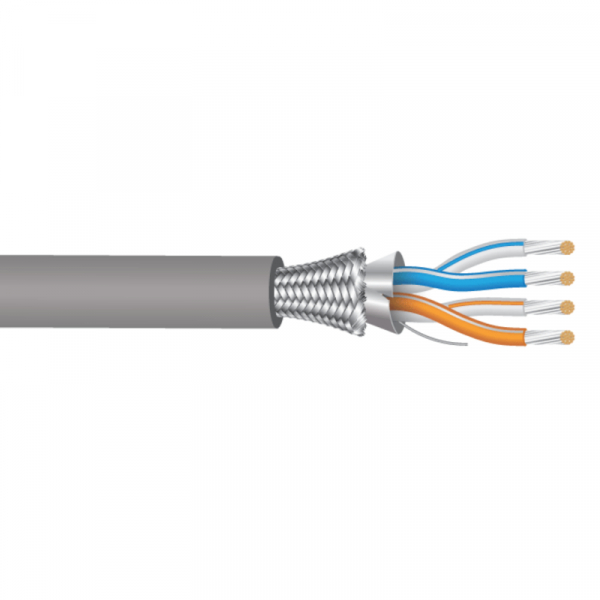

Paige 459842, 2 Pair 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 24 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Low Density Polyethylene
 2.2 Wall Thickness: .022”
 2.3 Color code:
                     1) White/Blue Blue/White
                     2) White/Orange Orange/White

 3. Cabling Overall Lay

 3.1 3” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Braid

 6.1 Material: Tinned Copper
 6.2 Size: 36 AWG
 6.3 Coverage: 90%

 7. Jacket

 7.1 Material: Sunlight Resistant PVC
 7.2 Wall Thickness: .035”
 7.3 OD: .340” nom.
 7.4 Color: Gray
 7.5 Ripcord: No
 7.6 Markings: PAIGE #459842 E191596 24 AWG 2 PAIR SHLD (UL) CM c(UL)us 75C
       OR AWM STYLE 2919 80C 30V LOW VOLTAGE COMPUTER CABLE ROHS II
       COMPLIANT REACH MADE IN USA (Ascending/Descending footage markings)

 8. Electricals

 8.1 Impedance: 120 ohms
 8.2 Capacitance: CDR-CDR 12.8 pF/ft. nom.
 8.3 Capacitance: CDR-SHLD 23 pF/ft. nom.
 8.4 Velocity of Prop: 66%

 SCOPE:

 This cable consists of 2 pairs 24 AWG stranded tinned copper; color-coded low density Polyethylene insulation;

 overall aluminum Mylar shield with drain wire; tinned copper braid; overall PVC jacket.

 Type CM or AWM 2919

 RoHS Compliant

 Application

 Communication Cable
