Paige 454656LSZH 16AWG-2C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 16 AWG
 1.2 Stranding: 19 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .008”
 2.3 Color Code: Black, Red

 3. Assembly

 3.1 Lay Length: 2.25” LHL
        (5.33 tw/ft)

 4. Jacket

 4.1 Material: Low Smoke Zero
 4.2 Halogen Polyolefin
 4.3 Wall Thickness: .016”
       O.D.: .180” nom.
 4.4 Color: Gray
 4.5 Ripcord: Yes
 4.6 Markings: PAIGE #454656LSZH 16AWG 2C LSZH 75C 300V
       ROHS II COMPLIANT REACH MADE IN USA
       (Ascending/Descending footage markers)

 5. Electricals

 5.1 Impedance: 68 ohms
 5.2 Capacitance: 23 pF/ft
 5.3 DC Resistance: 4.15 ohms/M ft. @
       20DegC
 5.4 Voltage: 300V max.

 Type

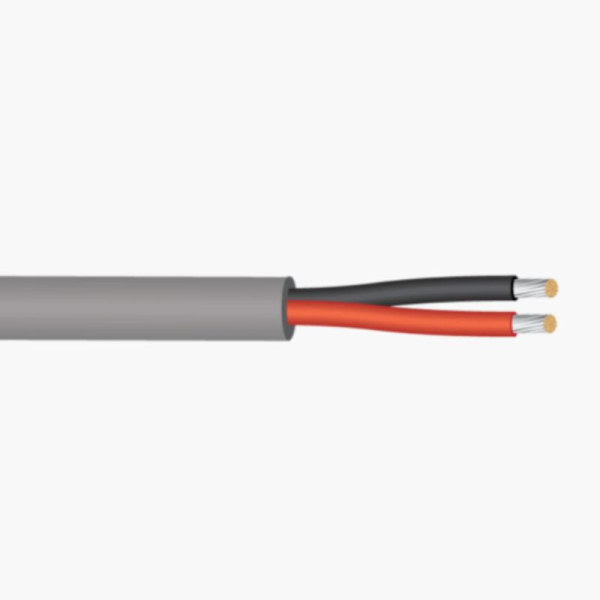

 This cable is composed of 2 conductors 16 AWG stranded bare copper conductor insulated

 with Polyethylene. A low smoke Zero Halogen Polyolefin jacket completes the package.
