Paige 45YE00820, 2 Pair 20 AWG Solid Bare Copper, Overall Shielded, Roll of 305 MTR

AED 634.41 AED 735.00
-14%
-14%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige45YE00820Config

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 20 AWG
 1.3 Construction: Solid

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .012”
 2.3 Color code:
 2.4 1-Red x Black
 2.5 2-White x Yellow

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 26 AWG
 5.3 Construction: Solid

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .047”
 6.3 OD: .246” nom.
 6.4 Color: Green
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #45YE00820 E191596 20 AWG 2PR c(UL)us CMR OR (UL) CL3R

 75C SUN RES FT-4 ROHS COMPLIANT MADE IN USA(Ascending/Descending footage

 markings)

 7. Electricals

 7.1 Capacitance CDR: 32 pF/ft.
 7.2 DC Resistance: 10 ohms/M ft.
 7.3 Voltage: 300 Volts

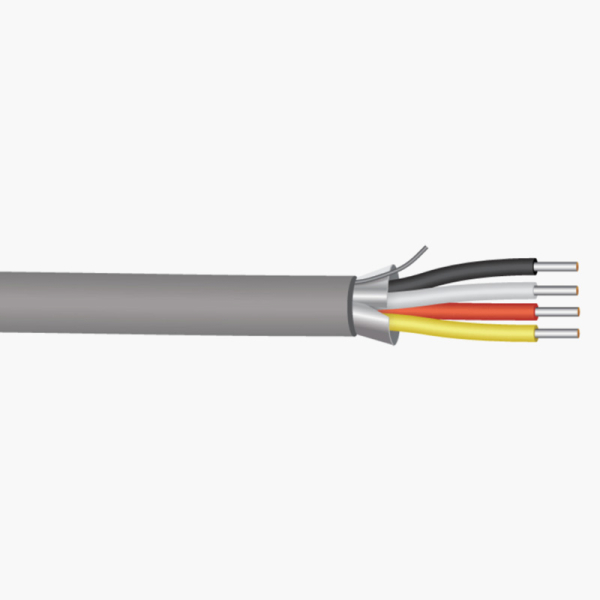

This cable consists of 2 pair 20 AWG solid bare copper; color-coded PVC insulation;

overall aluminum Mylar shield with drain wire; overall PVC jacket.

RoHS Compliant
