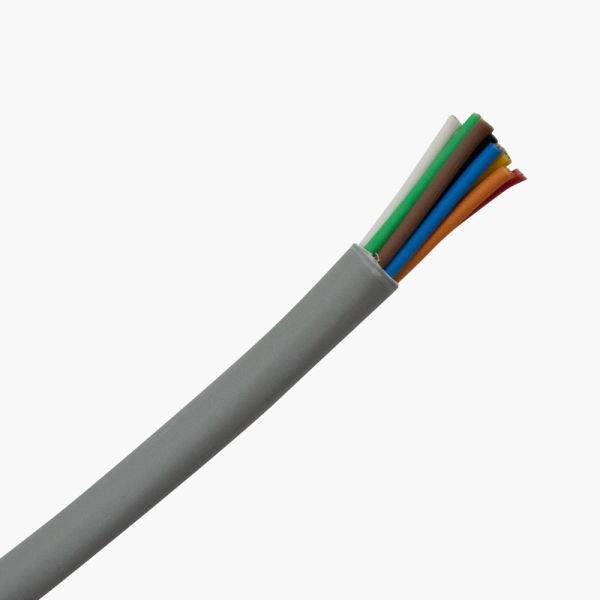

Paige 454670NH 18AWG-8C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 Conductor  :  18 AWG tinned copper

 Stranding  :  7/26

 Insulation Material  :  PE

 Nom. Insulation Thickness  :  0.010"

 Insulated Conductor Diameter  :  0.068"

 Number of Conductors  :  8

 Nom. Lay Length :  6.0"

 Jacket Material  :  Low Smoke Zero Halogen Polyolefin

 Jacket Thickness  :  0.020"

 Nom. Overall Cable Diameter  :  0.265"

 Approximat Cable Weight (lbs./Kft.)  :  61

 ELECTRICAL PROPERTIES

 Nom. DC Resistance per Conductor@ 2o°C :  6.43 Ohms/Kft. nom.

 Capacitance Between Conductors @ 1 KHz  :  35 pF/ft. nom.

 Operating Voltage  :  300 V RMS max.

 Temperature Rating  :  -20DegC to 60DegC

 Insulation Colors  :  Black, White, Red, Green, Brown, Blue, Orange and Yellow

 Jacket Color  :  Gray

 Legend (Surface Ink Print)  :  ****FT Paige USA 454670NH 18/8c STR 75c 300V LSZH

                                                             ROHS COMPLIANT DC LOT******

 DESCRIPTION:   8/18 Stranded LSZH

 CONSTRUCTION: This cable consists of eight bare copper insulated conductors with an overall extruded jacket.

 Application

 Communication Cable
