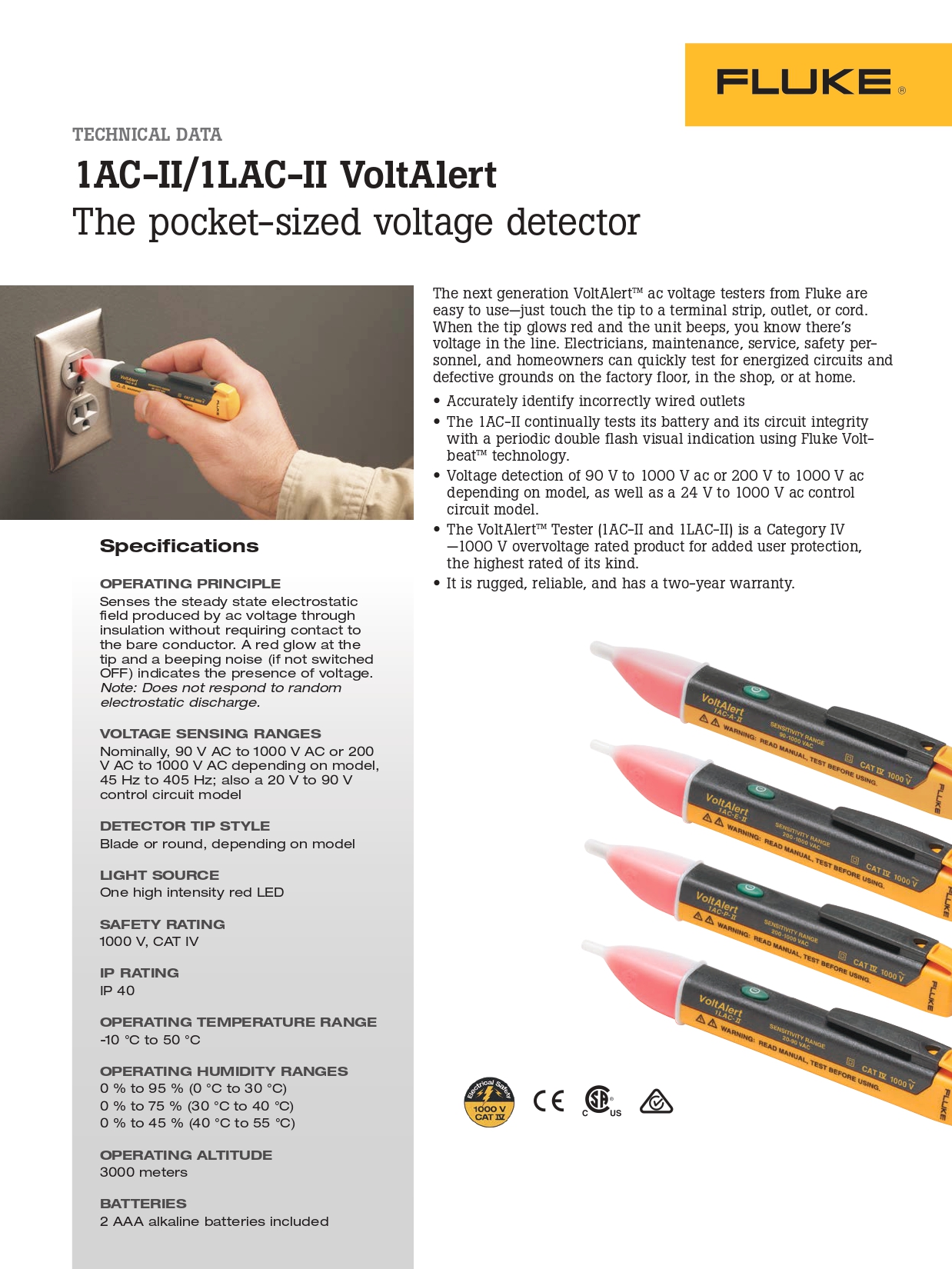

Fluke Non Contact Voltage Detector, 1AC II

 Specifications

 Operating Principles

 Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if

 not switched OFF) indicates the presence of voltage.

 Voltage sensing ranges

 Nominally, 90 V AC to 1000 V AC

 Detector tip style

 Flat-tip

 Light source

 One high-intensity red LED

 Safety

 IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V

 EMC

 IEC 61326-1: Portable

 IP Rating

 IP 40

 Operating Temperature

 -10DegC to 50DegC (-14DegF to 122DegF)

 Operating Humidity Ranges

 0% to 95% (0DegC to 30DegC)

 0% to 75% (30DegC to 40DegC)

 0% to 45% (40DegC to 55DegC)

 Operating Altitude

 3000 m

 Cleaning

 Clean with a damp cloth

 Batteries

 2 AAA alkaline batteries included

 Battery Life

 Typical battery life of greater than 1 year

 Warranty Period

 Two years

 The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps,   you know there's voltage present.
