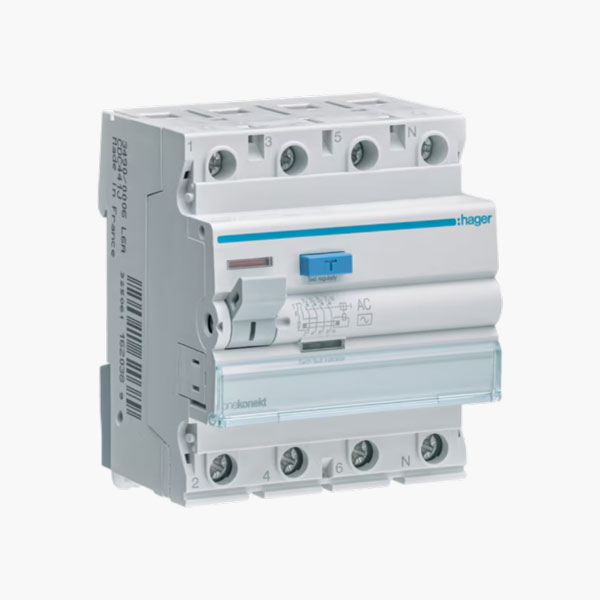

Hager ELCB

  HAGER ELCBs

   Characteristics

    Protection and control of circuits against earth leakage currents, between line and earth, and/or neutral and earth. Protects against electrical shocks.

   Technical Data

     - sensitivity: 10mA, 30mA, 100mA, 300mA, 500mA
     - voltage: 240V (2P) and 240/415V (4P)
     - current rating: 16A to 125A
     - frequency: 50Hz
     - type: AC type (Ensured for residual sinusoidal alternating currents whether suddenly applied or slowly rising)

   Technical Features

     - label holder (up to 63A)
     - IP2X terminals (up to 63A)
     - bi-connect (up to 63A)
     - earth fault indication (yellow = tripped)
     - ON/OFF indication
     - will accept auxiliaries
     - climate sealed: T2
     - trip free mechanism
     - fixed instantaneous tripping

   Connection Capacity

    - flexible: up to 16 mm2
    - rigid: up to 25 mm2

  Typical applications are:

  Protection and control of circuits against earth leakage currents, between line and earth, and/or neutral and earth. Protects against electrical shocks.
