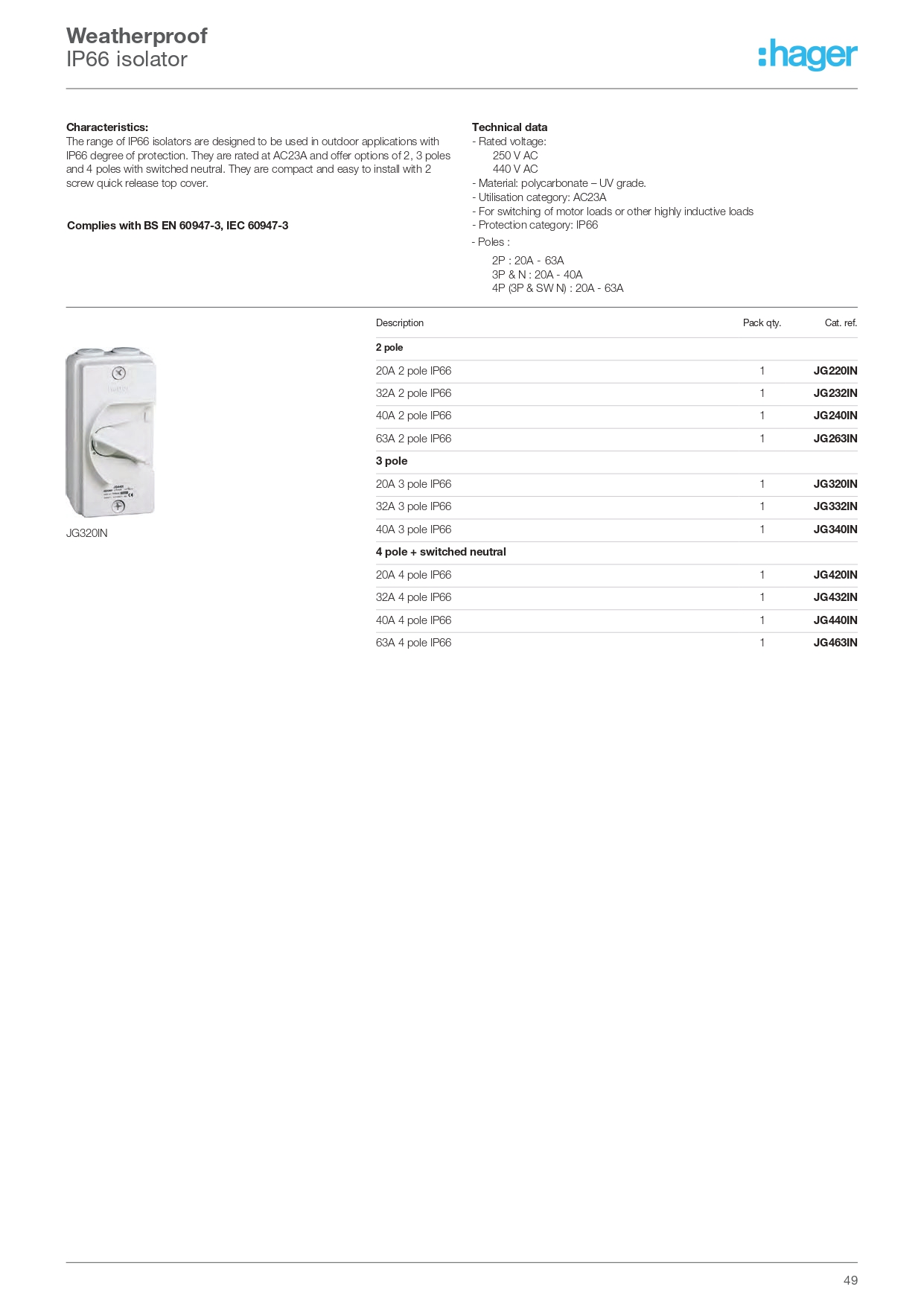

   Characteristics

     The range of IP66 isolators are designed to be used in outdoor applications with IP66 degree of protection.
     They are rated at AC23A and offer options of 2, 3 poles and 4 poles with switched neutral.
     They are compact and easy to install with 2 screw quick release top cover.

   Technical Data

     - Rated voltage:
          250 V AC
          440 V AC
     - Material: polycarbonate – UV grade.
     - Utilisation category: AC23A
     - For switching of motor loads or other highly inductive loads
     - Protection category: IP66
     - Poles :
         2P : 20A - 63A
         3P & N : 20A - 40A
         4P (3P & SW N) : 20A - 63A

Typical applications are:

 They are ideally suited for outdoor applications such as motor disconnectors, isolation of air conditioning units and AC isolators for a photovoltaic system.
