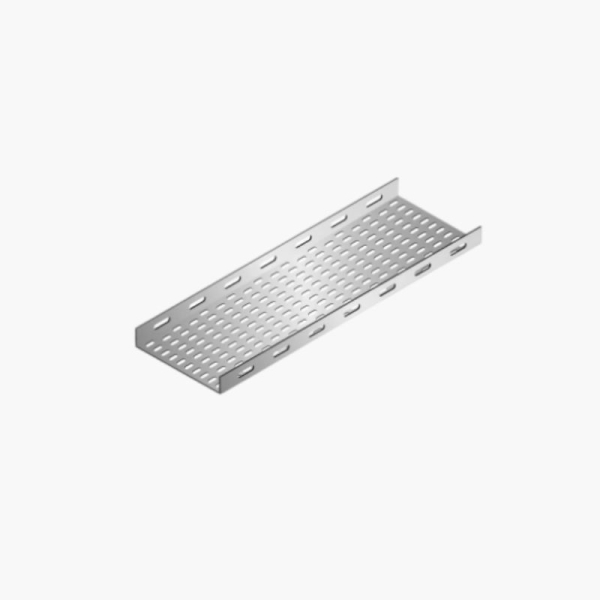

Fortis G.I Cable Tray

    Fortis G.I Cable Tray

   In a building environment, cables need to be run from the main distribution board to sub main boards. In order to ensure safe transportation  and  distribution of cables, it is essential to use an appropriate cable support system. Cable Trays ensure that this supportfunction is  adequately performed. The trays are supported at regular intervals enabling appropriate loading in accordance with requirements of standards.

    Light Duty Cable Tray:
    Length: 3 Meters
    Flange Height :
    For width from 50mm - 100mm : 15mm
    For width from 150mm - 600mm: 25mm

    Heavy Duty Cable Tray:
    Length: 3 Meters
    Flange Height :
    For all widths : 50mm
    Return Flange : 12mm (25mm available on request)

    Typical applications are:

             Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial                construction.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
