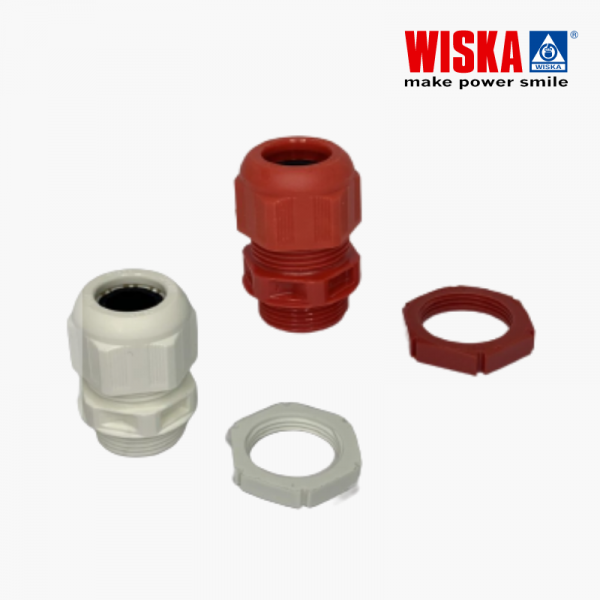

Material cable gland Polyamide Material sealing gasket EPDM Temp. range min -40 °C Temp. range max 100 °C Protection class IP68 (5 bar 30 min), IP69 Thread type M Ø Connection thread D 20 Lead 1,5 Length screw-in thread L 10 mm Ø cable diameter min 7,5 mm Ø cable diameter max 14 mm Key width SW 24 mm Collar diameter (E) 27 mm Total length TL 36 mm - 45 mm Glow wire test 750 °C Type of cable anchorage A Install. torques fitting 4 N m Install. torques cap nut 3 N m Product Color RAL 3000 Order no. RAL 3000 10110754 Type GLP20+ red Packing unit 10
