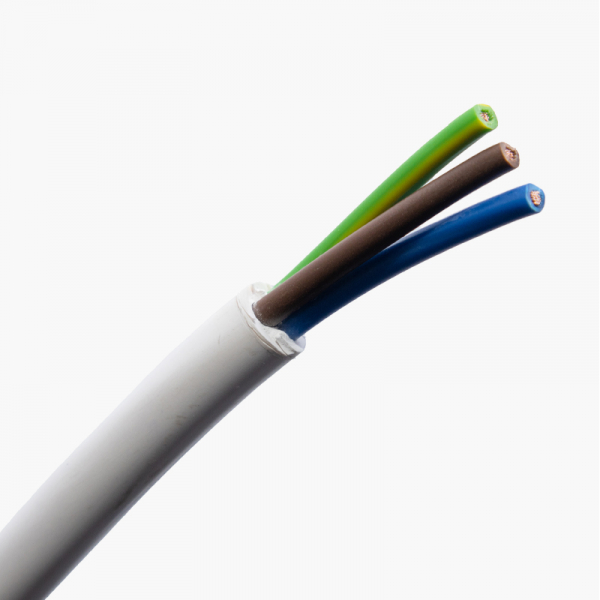

Siechem PVC Flexible Cables, Roll of 100 Yards
- UOM: Roll
- Highly resistant against acids, lyes, certain oils at room temperature
- Improved sliding effect
- Flexible conductors with soft PVC insulation sheath for flexibility
- Conforms to BS 6500
APPLICATION
Used in indoor/outdoor as control cables in industries, Excellent UV- protection, Used in dry or damp or wet interiors and flexible
DATASHEET
Product Construction
-
Conductor: Finely standard bare copper wires
-
Insulation: PVC compound
-
Filling material: PVC compound
-
Outer sheath: PVC material and with white colour
-
Coloured cores
Technical Data
-
Temperature range
                                    Flexible application: -5 deg to +70 deg
                                    Fixed installation: -40 deg to +80 deg
-
Voltage for testing: 4kv
-
Bending radius (Minimum)
                                    Flexing: 15 X cable Diameter
                                    Static: 4 X Cable Diameter
-
Rated Voltage: 300/500V
-
Test voltage: 2000V
-
Bare copper conductor: Flexible
-
PVC insulation: Brown, Blue, Yellow-Green
-
Rated voltage: 300/500V
-
PVC jacket: White
