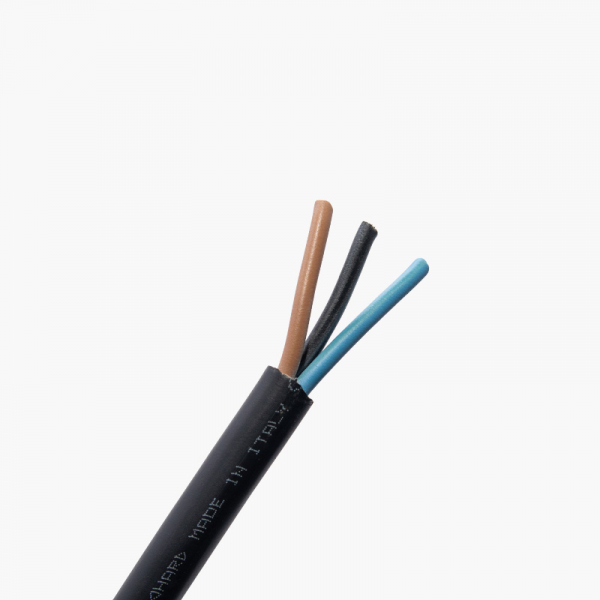

ICC Rubber Cable, Tinned, AO7RN-F

 CABLE CHARACTERISTICS

 Rated voltage Uo/U

 450/750 V (0.6/1kV)

 According to HD516: Guide to using of low voltage Harmonized cables the use up 1000V a.c,

 is permitted for fixed protected installation (in conduit or appliances)

 and also for motor connection of hoisting motors and the like

 Temperature in case of a short circuit

 200DegC on the conductor (max duration 5 seconds).

 Bending radius

 Mobile installation: 4 x outer diameter of the cable

 Fixed installation: 3 x outer diameter of the cable

 Operating temperature:

 -25DegC to +90DegC on the conductor

 H07RN-F cable is suitable for applications such as handling equipment, mobile power supplies, construction sites, stage and audio-visual equipment, port areas, and dams.

 Finally, h07 mains leads are considered heavy-duty and flame retardant, as a result, the leads are suitable for use in severe industrial environments.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
