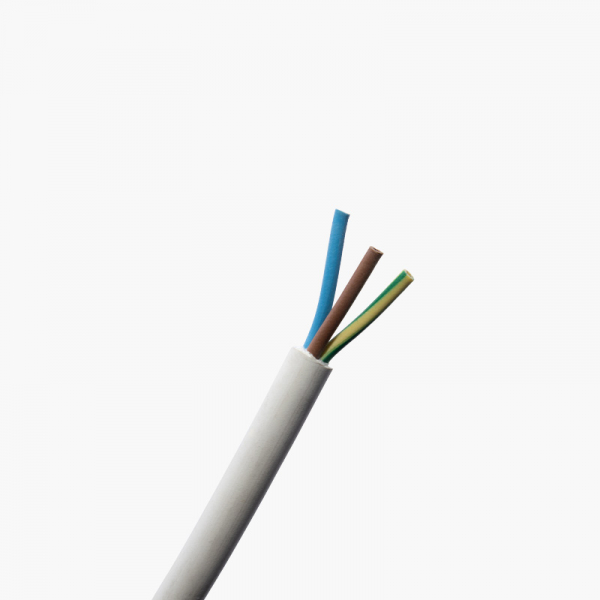

ICC 3C EPR/HOFR 450/750V, HO7BN4-F, Tinned CU, White

 CABLE CHARACTERISTICS

 Rated voltage Uo/U

 450/750 V

 The temperature in case of a short circuit:

 200DegC on the conductor (max duration 5 seconds

 Operating temperature

 40DegC to +90DegC on the conductor

 Bending radius

 Mobile installation: 4 x outer diameter of the cable

 Fixed installation: 3 x outer diameter of the cable

 Special Sheath Colour

 White

 H07BN4 – F

 FLAME RETARDANT, FLEXIBLE EPR RUBBER INSULATED AND HOFR CSP SHEATHED CABLES

 (Heat and Oil Resistant and Flame Retardant)

 1- Flexible bare or tinned copper class 5 EN 60228

 2- EPR Type EI7 according to EN 50363

 3 - Rubber filler (size over 6 mm2)

 4 - HOFR Rubber type EM7 according to EN 50363

 Application of H07BN4-F can be used up to 1000V in alternative current for protected static installations and for connecting motors in lifting appliances.

 It is widely used in the Building & Construction industry, as well as in Renewable Energy, and Water Treatment.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
