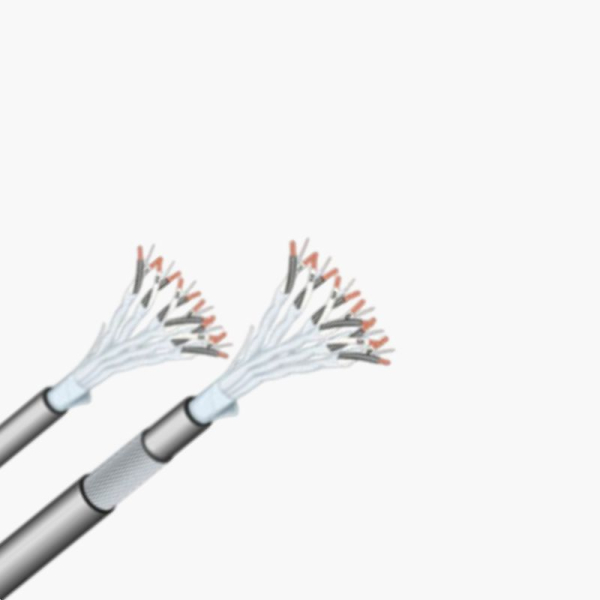

Cavicel Instrumentation Cables, R-XLPE/OS/LSZH/SWA/LSZH, 1.5mm

 CABLE CONSTRUCTION

  Conductors

 Plain Annealed Elctrolytic Copper Wire accoring to EN60228 Class 1 Solid, Class 2 Standard, Class 5 Flexible.

 Insulation

 PVC, PE, XLPE, LSZH Thermoplastic Material.

 Twisting

 The insulated cores shall be twisted in pairs for good reduction of electromagnetic noise.

 Cabling

 The pair/strands are cabled with suitable non-hygroscopic fillers and wrapped with polyester tapes.

 Overall Screen

 Aluminum tape, > 100% Coverage

 Outer Sheath

 PVC or lSZH Thermoplastic material

 Operating Temperature

 -20°C + 80°C

 Instrumentation Cables are primarily intended for general application.

 Typical applications are:

 Can be used in cable tray or conduitto connect electrical Instrumentation and communication circuits in industrial controls, refiniries, Oil and Gas plants.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
