Fluke Insulation Resistance Meter 1507, 600V, 20 to 20000 Ohm

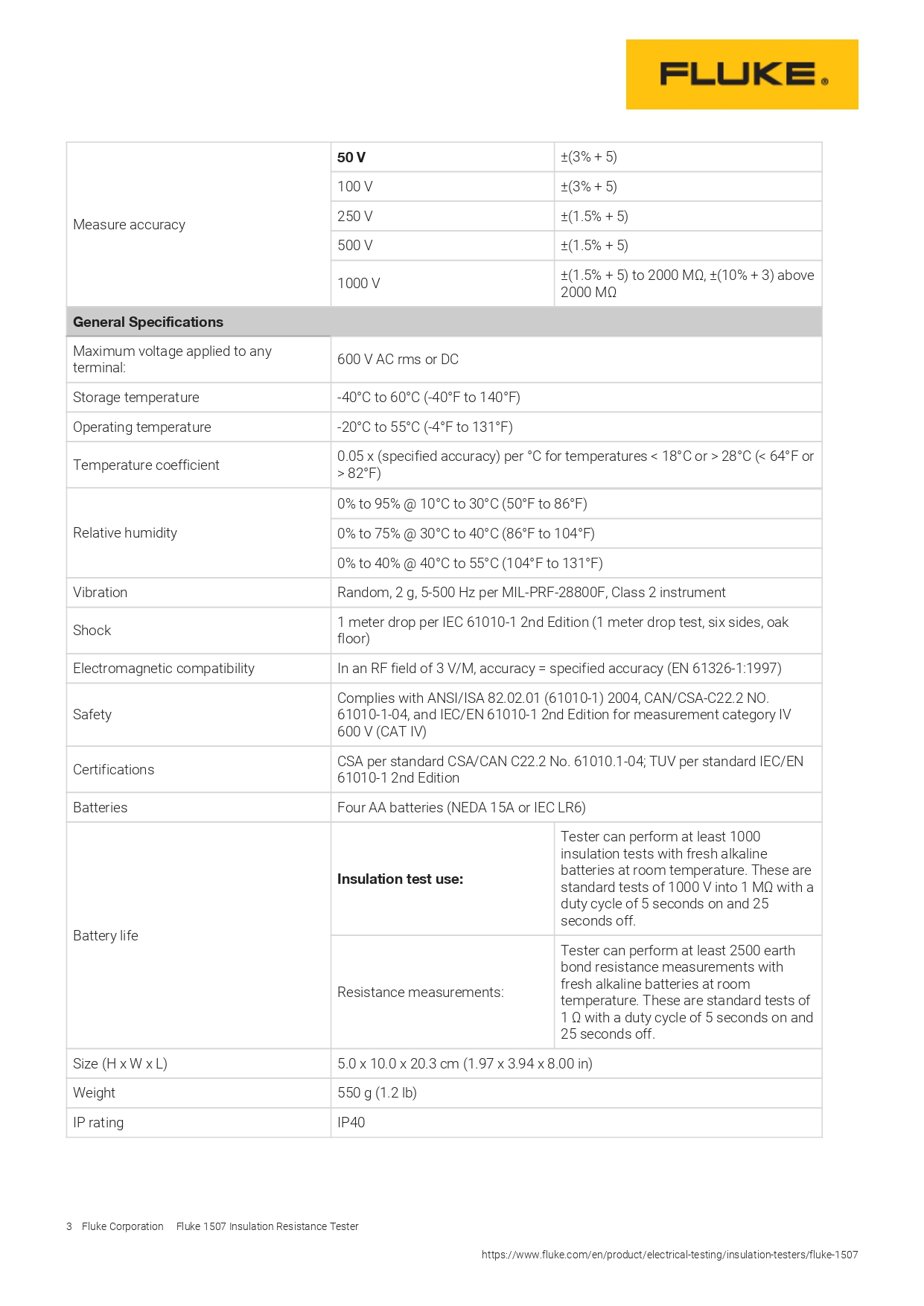

 General Specifications

 Maximum voltage applied to any terminal

 600 V AC rms or DC

 Storage temperature

 -40DegC to 60DegC (-40DegF to 140DegF)

 Operating temperature

 -20DegC to 55DegC (-4DegF to 131DegF)

 Temperature coefficient

 0.05 x (specified accuracy) per DegC for temperatures < 18DegC or > 28DegC (< 64DegF or > 82DegF)

 Relative humidity

 0% to 95% @ 10DegC to 30DegC (50DegF to 86DegF)

 0% to 75% @ 30DegC to 40DegC (86DegF to 104DegF)

 0% to 40% @ 40DegC to 55DegC (104DegF to 131DegF)

 Certifications

 CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

 Batteries

 Four AA batteries (NEDA 15A or IEC LR6)

 Size (H x W x L)

 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

 Weight 550 g (1.2 lb)

 IP rating

 IP40

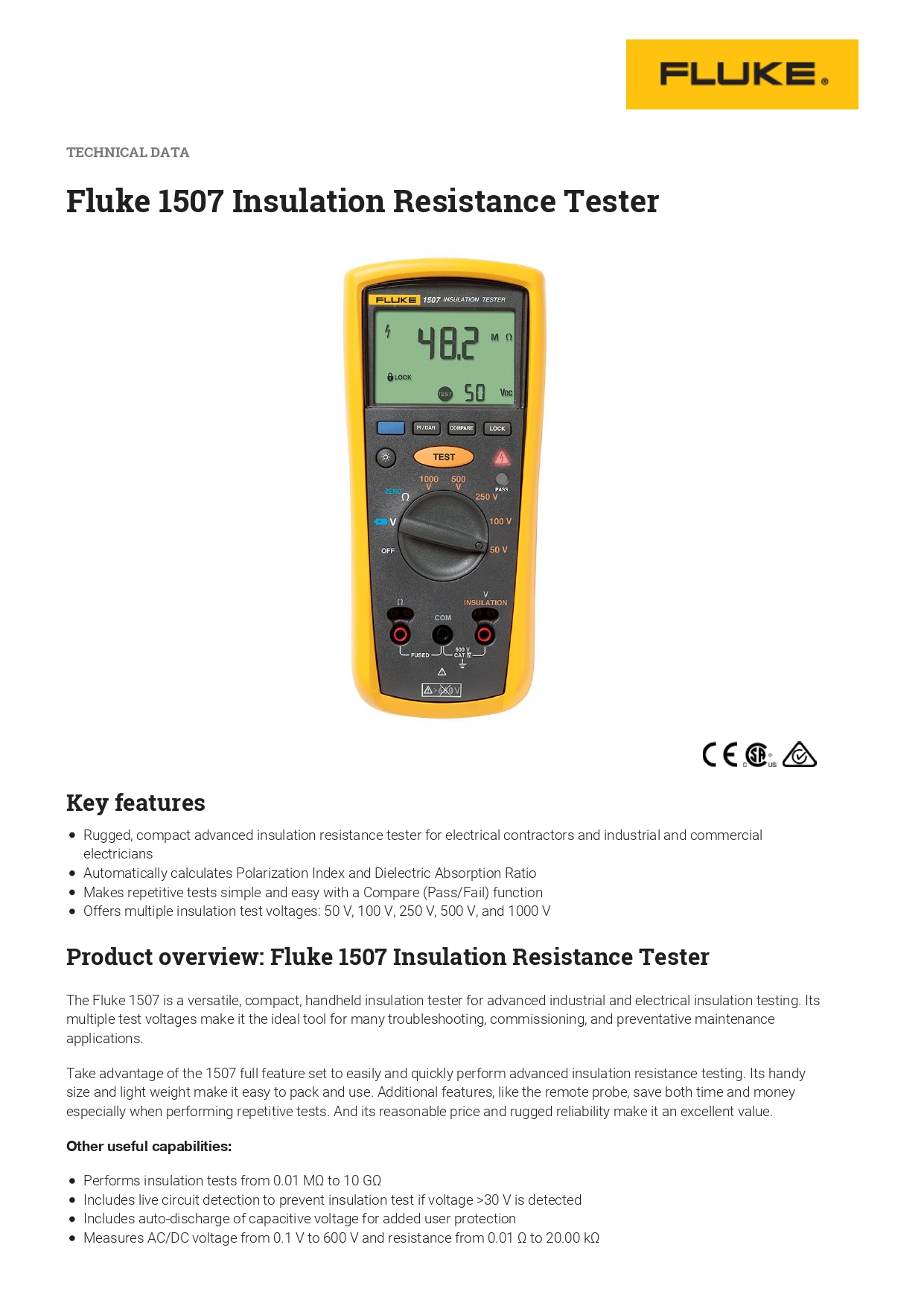

 The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many   troubleshooting, commissioning, and preventative maintenance applications.
