Fluke TRMS Wireless HVAC Clamp Meter, 902-FC, 600A, 600V

 Mechanical and general specifications

 Maximum voltage between any terminal and earth ground

 600 V

 Battery type

 2 AA alkaline batteries, NEDA 15A, IEC LR6

 Temperature Operating

 -10 DegC to +50 DegC (14 DegF to + 122 DegF)

 Storage

 -40 DegC to +60 DegC (-40 DegF to + 140 DegF)

 Altitude Operating

 3,000 m (9,842 ft)

 Dimensions

 230 mm x 83.7 mm x 45.4 mm (9.06 in x 3.30 in x 1.39 in)

 Weight (meter only)

 419 g (14 oz)

 Temperature coefficients

 Add 0.1 × specified accuracy for each degree C above 28 DegC or below 18 DegC

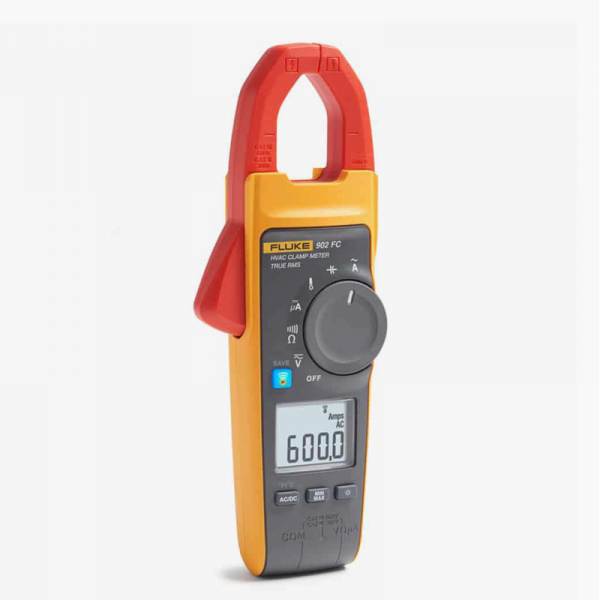

 The Fluke 902 FC Clamp Meter, with Fluke Connect wireless connectivity, can help HVAC technicians improve productivity in the field.

 The rugged dual-rated CAT III 600 V, CAT IV 300V meter equips you to perform many essential HVAC system measurements: microamps for testing pilot light sensors;

 resistance up to 60 kΩ; AC current and AC/DC voltage; capacitance; and contact temperature, all with just one tool.

 Plus its small form factor makes it easy to hang on to and navigate in tight work spaces.
