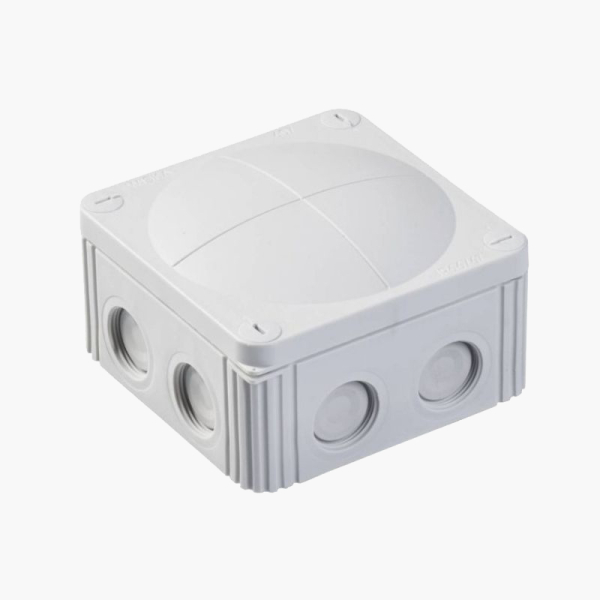

Wiska 110 X 110 X 66 MM Electrical Junction Box With Terminal Block - Waterproof, Combi 6075 LG, 10060532

 Material

 Polypropylene

 Material Sealing Gasket

 TPE

 Temperature Range

 -30 Degree Celsius to 100 Degree Celsius

 Protection Class

 IP66 / IP 67

 Voltage

 690 V

 Fixing

 4 Internal Openings

 Model No

 10060532

 Dimension

 110 X 110 X 66 mm

 IP66

 Using the membrane entry

 IP67

 Using the threaded entry together with ESKV cable gland

 Equipment

 7 M25 threaded membrane entries

 3 membrane cable entries through the rear

 4 captive cover screws

 Inclusive terminal block 5-pole, 6mm

 Fixing

4 internal openings outside of the sealing area

  Junction boxes are used to connect cables to add socket, lighting points, extend circuits etc. They can also be used to make repairs where a section of cable needs to be replaced.
