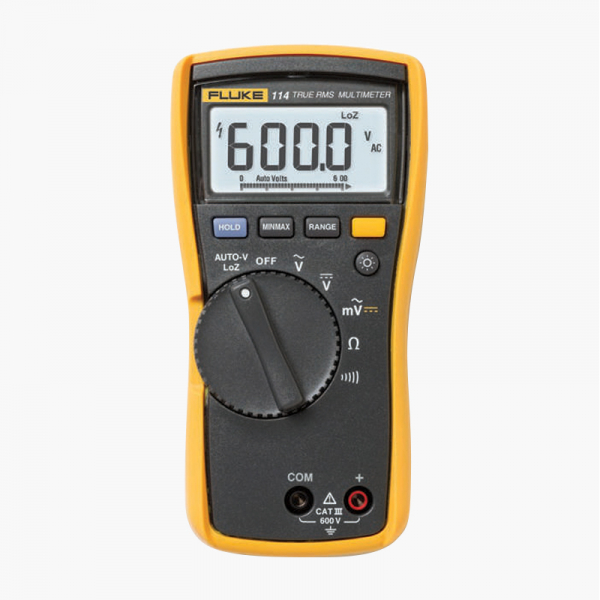

Fluke Digital Multimeter 114

 SPECIFICATIONS

 Maximum voltage between any terminal and earth ground

 • AutoVolt: automatic AC/DC voltage selection

 • Large white LED backlight to work in poorly lit areas

 • Resistance and continuity

 • Min/Max/Average to record signal fluctuations

 • CAT III 600 V safety rated

 Safety

 IEC 61010-1: Pollution Degree 2

 IEC 61010-2-033: CAT III 600V

 Display

 Digital 6,000 counts, updates 4 per second

 Bar graph

 33 segments, updates 32 per second

 Operating temperature

 -10DegC to + 50DegC

 Storage temperature

 -40DegC to + 60DegC

 Battery type

 9-volt Alkaline, IEC 6LR61

 Battery life

 400 hours typical, without backlight

 Size

 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

 Weight

 550 g

 Fluke 114 digital multimeter is the ideal choice for go/no-go testing

 Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing.

 Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. You can use the LoZ function to identify so-called ghost voltage and prevent false readings.
