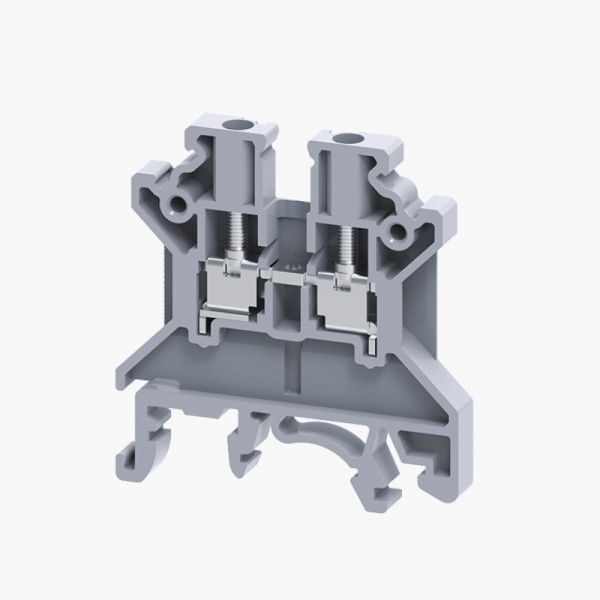

Connectwell 2.5 MM Terminal Connector, CTS-2.5U
Hurry Up! Sold: 0/51 products in stock.
Rated Voltage
1000 V
Rated Current
24 A
Tightening Torque
0.4 Nm
Housing Material
Polymide
Product Function
Feed Through
Wire Entry Orientation
Side Entry
Mounting Possibility
DIN 32/DIN 35/DIN 35-15 Rail
Screw Size
M2.5
Operated by
Screwdriver
Rated Surge Voltage
8 KV
Pollution Degree
3
2.5 sq.mm Feed Through Terminal Blocks are the most Versatile terminals for control, automation, instrumentation and power distribution applications. A specially designed flexible foot enables easy mounting and dismounting from the Din Rail with the help of a screw driver. These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links / sleeves & screws.
Weight :
Dimension :
Cable in one drum:
Pallet weight :
Total net weight including both :
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/media/wysiwyg/CTS2.5UN_page-0001_1.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/media/wysiwyg/CTS2.5UN_page-0002.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/media/wysiwyg/CTS2.5UN_page-0002.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/media/wysiwyg/CTS2.5UN_page-0003.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/static/version1718615587/frontend/ayo/ayo_home6/en_US/Magefan_LazyLoad/images/pixel.jpg)
![](https://www.gokahraba.com/media/wysiwyg/CTS2.5UN_page-0003.jpg)
product brand | CONNECTWELL |
---|
