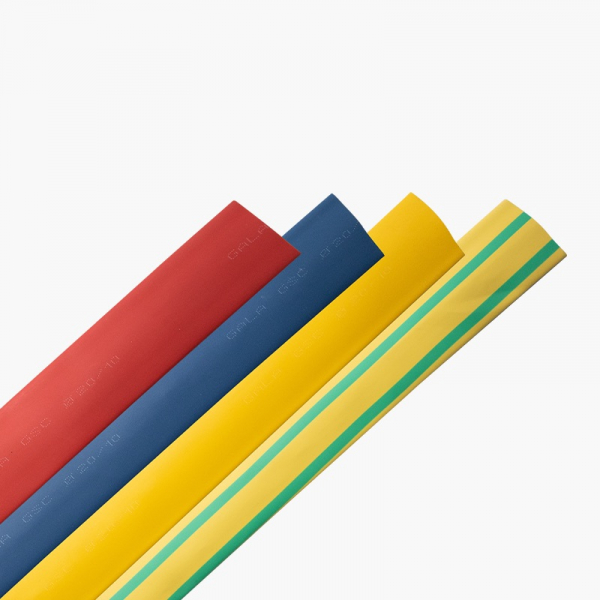

Gala Heat Shrinkable Sleeve

AED 0.58

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
GHSS
  • UOM : Meters
  • Shrink ratio 2:1
  • UV stabilized
  • Flame retardant
  • Halogen free and self-extinguishing
  • For Electrical Insulation up to 3.3 kV
  • Resistance to chemical, copper corrosion and fungus
  • Standard Colors: Black, Yellow, Red, Blue and Yellow/Green
  • Meets RoHS Compliance
  • Light duty wire harnessing for electrical & electronic applications
  • Provides electrical insulation and protection for in-line components
  • Used as strain relief for electrical wire connection
  • Bus-bar insulation for switchgear

DATASHEET

PROPERTIES

VALUE

STANDARD



PHYSICAL


Tensile Strength 16 N/mm2 (Mpa) (min.) ASTM D638
Ultimate Elongation 300 % (min) ASTM D638
Water absorption 0.15 % (max.) ASTM D570
Specific Gravity 1.4 ASTM D792
Longitudinal Change -10% (max.) ASTM D638



THERMAL


Operating Temperature -55 to +125 C IEC 216
Heat Shock (250 C for 4 hrs.) No dripping, cracking -
Low Temperature Flexibility No Cracking ASTM D2671
Flammability Pass UL224 VW1


CHEMICAL


Fungus Resistance Inert MIL-1-7444
Copper Corrosion Good ASTM D2671B
Chemical Resistance Good ASTM D2671


ELECTRICAL


Dielectric Strength >20 kV/mm. ASTM D2671
Di-electric Constant 3.0 (max.) ASTM D150
Volume Resistivity 1 x 1014 Ohm.cm (min ASTM D257
