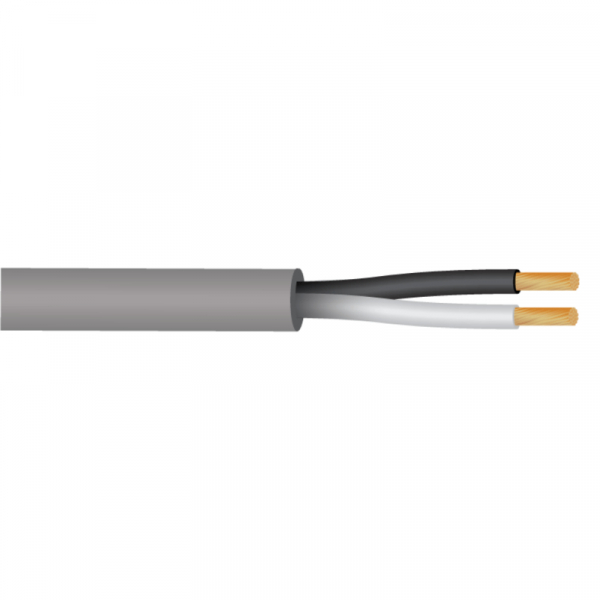

Paige 458471, 2 Core 16 AWG Stranded Tinned Copper, Unshielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .023” nom.
 2.3 Color code:
       1-Black
       2-White

 3. Jacket

 3.1 Material: PVC
 3.2 Wall Thickness: .032” nom.
 3.3 OD: .268” nom.
 3.4 Color: Gray
 3.5 Ripcord: Nylon
 3.6 Markings: PAIGE #458471 E191596 16 AWG 2/C (UL) CMG C(UL)US FT-4 OR
        AWM 2598 60’C 300V ROHS (Ascending/Descending footage markings)

 SCOPE:
   This cable consists of 2 conductors 16 AWG stranded tinned copper; color-coded PVC insulation; overall PVC jacket.
   Type CMG c(UL)us or AWM 2598
   RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
