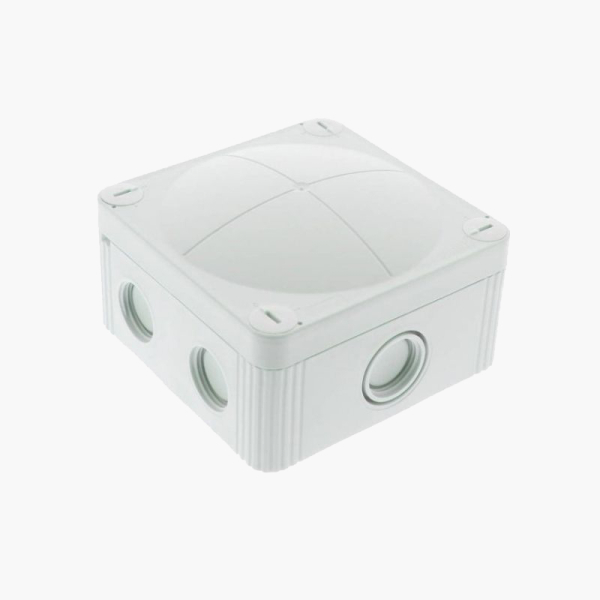

Wiska 95 X 95 X 60 MM Electrical Junction Box - Waterproof, Combi 407 LG, 10105595

 Material

 Polypropylene

 Material Sealing Gasket

 TPE

 Temperature Range

 -30 Degree Celsius to 100 Degree Celsius

 Protection Class

 IP66 / IP 67

 Voltage

 690 V

 Fixing

 4 Internal Openings

 Model No

 10105595

 Dimension

 95 X 95 X 60 mm

 IP66

 Using the membrane entry

 IP67

 Using the threaded entry together with ESKV cable gland

 Equipment

 6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with a knockout to M25

 2 membrane cable entries through the rear

 4 captive cover screws

 Including mounting clip

 Fixing

 With mounting clip or 4 internal openings outside of the sealing area

 Waterproof junction box can be used inside and outside the home to prevent rain and dust, and effectively prevent water from entering the circuit and electronic equipment in the   box.
