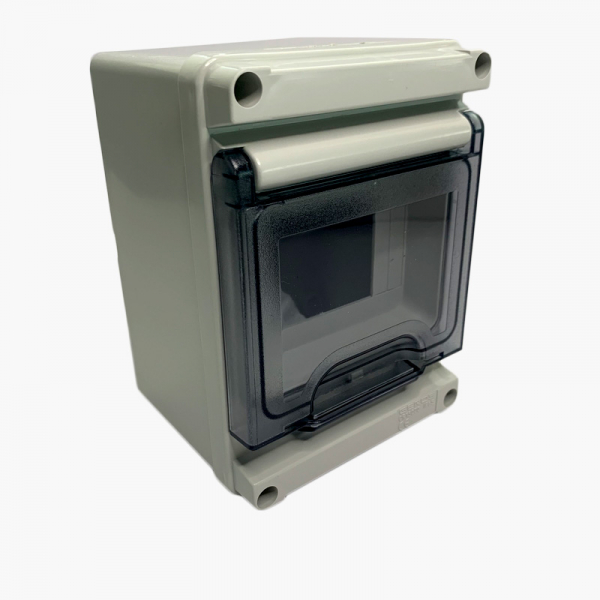

Geros DB Enclosure Surface, Horizontal

 TECHNICAL CHARACTERISTICS

 • Degree of protection IP 55
 • Insulation class II
 • Available with transparent smoky door horizontally hinged in
   the version with a sealable spring closure and with key
   lock
 • Available in RAL 7035 grey
 • Available in thermoplastic self-extinguishing material resistant
   to abnormal heat and fire up to 650°C (glow wire test) in
   compliance with IEC 695-2-1 Standard
 • Resistant to chemical agents (water, saline solutions, acids.
   mineral bases and oils), to atmospheric agents and UV rays
 • Dimensional stability under constant operating conditions from
    –20Degto +85Deg C
 • Shock resistant 6 joules
 • Possibility of installation in environments with major risk in the
   event of fire (CEI 64-8 part 7 section 751 Standard) and in
   AD-FT environments (CEI 64-2 Standard, IV edition)
 • Consumer units made and produced in compliance with CEI
   23-48, CEI 23-49 and IEC 670 Standards

 A complete, versatile system of modular enclosures, perfectly integrated in the SYSTEM

 domestic range capable to meet the high protection installation requirements of domestic, commercial and industrial sectors.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
