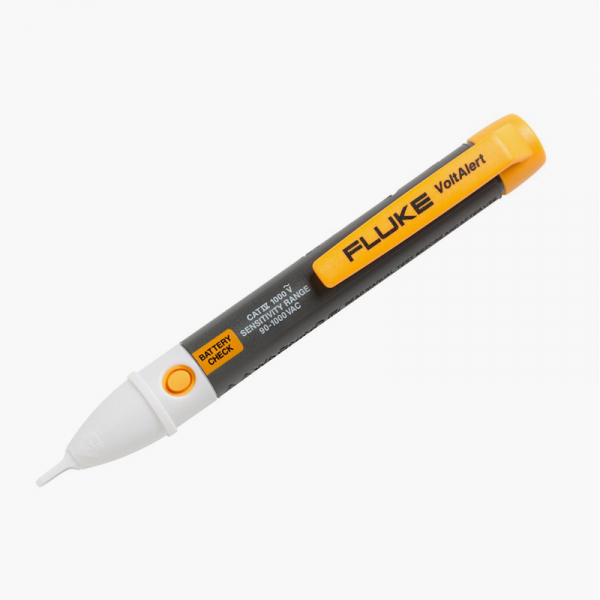

Fluke Non Contact Voltage Detector, FLK2AC-200-1000VCL
Key features
- Non-contact voltage detection from 90 to 1000 V AC
- Innovative 'Battery Check' ensures the battery is in good condition*
- Integrated clip design, optimized for pocket storage
DATASHEET
Hurry Up! Sold: 100/0 products in stock.
| Specifications | |
| Operating Principles | Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage. |
| Safety Compliance | Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2 |
| EMC Compliance | Meets IEC 61326-1:2006 |
| Operating | 90 V AC to 1000 V AC, CAT IV 1000 V rated |
| Temperature (Operating and Storage) | -10°C to 50°C (-14°F to 122°F) |
| Operating Humidity Ranges | 0% to 95% (0°C to 30°C) |
| 0% to 75% (30°C to 40°C) | |
| 0% to 45% (40°C to 55°C) | |
| Altitude | 2000 m (CAT IV 1000 V) |
| Cleaning | Clean with damp cloth |
| Battery Life | Typical battery life of greater than one year |
| Warranty Period | Two years |
Always on for faster, safer voltage testing
The Fluke 2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family. It is designed to be pocket-sized and easy to use. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present. The 2 AC is always on, with a battery check function to make sure the tester is working properly. *
