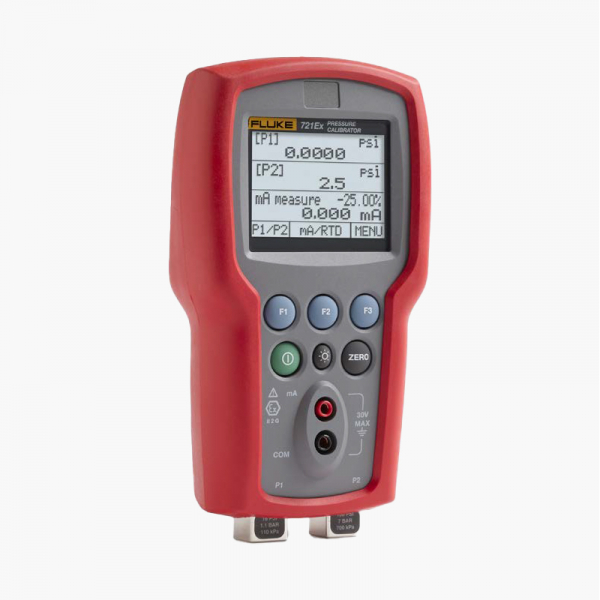

Fluke Pressure Calibration, 721-3601

0 Review
AED 13,302.45 AED 13,948.20
-5%
-5%

Price inclusive of all taxes

Availability: In stock
SKU:
FLUKE7213601CS

Key features

  • Precision pressure calibrator with dual isolated sensors for gas flow calibration (custody transfer) applications
  • Features two isolated, stainless steel, pressure sensors with 0.025% accuracy
  • Includes Pt 100 RTD input for temperature measurement (probe optional)
  • Measures 4 to 20 mA signals
  • Provides an internal 24 V loop power supply to power a transmitter under test

DATASHEET

Hurry Up! Sold: 100/0 products in stock.

General Specifications
Instrument setup recall Last used on power-up
Environmental Operating temperature -10°C to +50°C
Storage temperature (without batteries) -20°C to +60°C
Altitude 2,000 m
Ingress protection IP-40
Power requirements 6.0 V DC
Battery life >35 hours, typical usage
Batteries required (4) Standard AA cells
Dimensions (H x W x D) 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm)
Weight 03539 kg (1 lb 3 oz)
Connectors/ports pressure Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe
Electrical and Temperature Measurement 1-Year
Function Range Resolution Accuracy
mA measure 0 to 24 mA 0.001 mA ±0.015% of rdg
±0.002mA
V DC measure 0 to 30 V DC 0.001 V ±0.015% of rdg
±0.002 V
Temperature measure (RTD/ Ohms)1 -40°C to 150°C
(-40°F to 302°F)		 0.01°C, 0.01°F ±0.015% of rdg
±0.02 ohms
±0.1°C (±0.2°F)
±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe accessory
Loop power supply 24 V N/A 24 mA @ 24 V
