General specifications
Battery type
Rechargeable lithium-ion battery (charge time: 4.5 hours)
Operating temperature
-10 DegC to 50 DegC (14 DegF to 122 DegF)
Storage temperature
-20 DegC to 60 DegC (-4 DegF to 140 DegF)
Relative humidity
0% to 90% (0 DegC to 35 DegC) (32 DegF to 95 DegF)
0% to 75% (35 DegC to 40 DegC) (95 DegF to 104 DegF)
0% to 45% (40 DegC to 50 DegC) (104 DegF to 122 DegF)
Altitude
2,000 meters (6,561 feet)
Temperature coefficient
Add 0.1 x specified accuracy for each DegC above 28DegC or below 18DegC (DegF above 82 DegF or below Deg F)
Ingress Protection
(IP) IP40 (non-operating)
Wireless frequency
2.4 GHz ISM Band, 20 meter range
Certifications
CE, CSA, FCC
Safety compliance
IEC 61010-1: Pollution degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V
EMC
EN 61326-1:2012
Size
215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in)
Weight
0.793 kg (1.75 lb)
Warranty
Limited three-year warranty

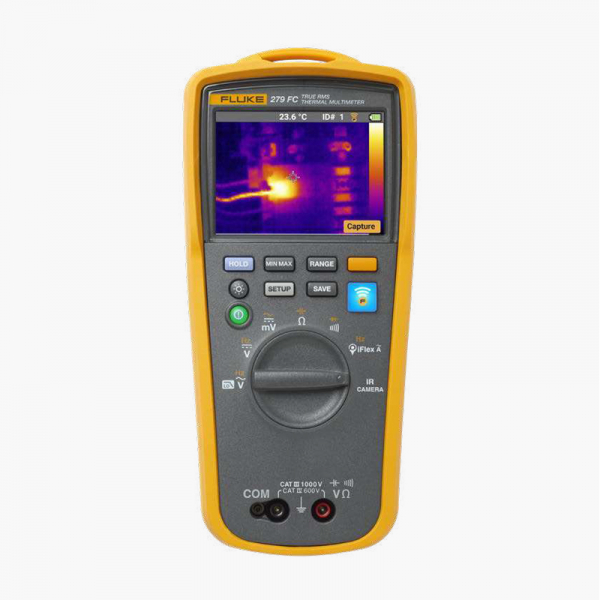

With the ability to scan, this thermal multimeter allows users to find electrical problems from a distance.
This tool also verifies hot spots on high-voltage equipment and transformers and identifies the heating of fuses, wires, insulators, connectors, splices, and switches.
Additionally, it comes equipped with the iFlex probe.
Weight :
Dimension :
Cable in one drum:
Pallet weight :
Total net weight including both :
product brand | FLUKE |
---|
