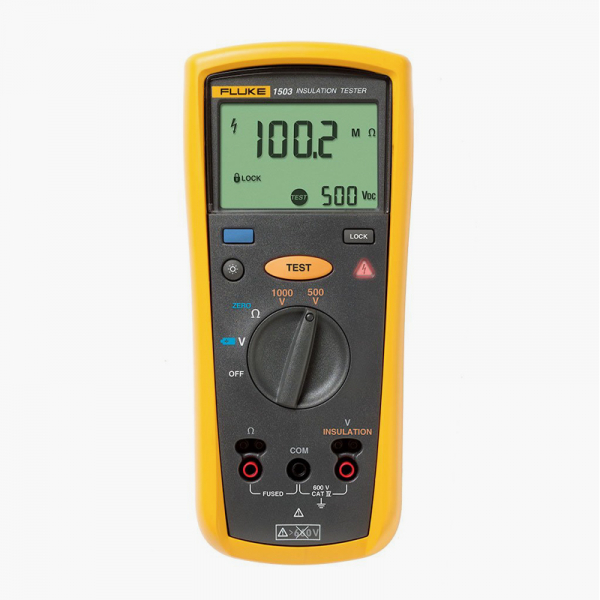

Fluke Insulation Resistance Meter, 1503

 KEY FEATURES

 A rugged, compact insulation resistance tester for residential and commercial electricians

 Performs insulation tests from 0.01 MΩ to 2000 MΩ

 Offers two insulation test voltages: 500 V and 1000 V

 Includes live circuit detection to prevent insulation test if voltage >30 V is detected

 Measures resistance from 0.01 Ω to 20.00 kΩ

 GENERAL SPECIFICATION

 Maximum voltage applied to any terminal

 600 V AC rms or DC

 Storage temperature

 -40DegC to 60DegC (-40DegF to 140DegF)

 Operating temperature

 -20DegC to 55DegC (-4DegF to 131DegF)

 Temperature coefficient

 0.05 x (specified accuracy) per DegC for temperatures < 18DegC or > 28DegC (< 64DegF or > 82DegF)

 Relative humidity

 0% to 95% @ 10DegC to 30DegC (50DegF to 86DegF)

 0% to 75% @ 30DegC to 40DegC (86DegF to 104DegF)

 0% to 40% @ 40DegC to 55DegC (104DegF to 131DegF)

 Certifications

 CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition\

 Batteries

 Four AA batteries (NEDA 15A or IEC LR6)

 Size (H x W x L)

 5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

 Weight

 550 g (1.2 lb)

 IP rating

 IP40

 The Fluke 1503 is a great choice for basic residential and commercial electrical insulation testing. This rugged, compact tool fits in the palm of your hand.

 The 1503 has the same form factor as the Fluke 1507 but with a few fewer features. You can count on it to handle the most common tests at the most affordable price. Additional features,

 like the remote probe, reduce the time needed to perform repetitive testing.
