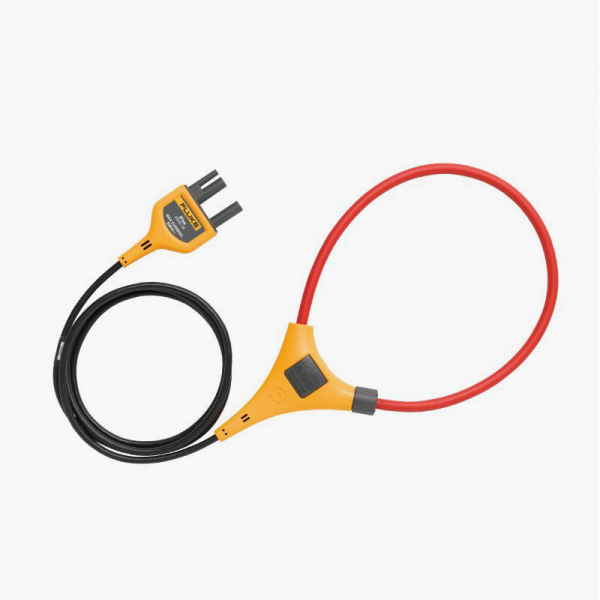

Fluke Flexible Current Probes, i2500-18, iFlex, 2500A

0 Review
AED 724.56 AED 766.50
-5%
-5%

Price inclusive of all taxes

Availability: In stock
SKU:
FLUKEI250018

Key features

  • Expands the Measurement Range to 2500 A AC while Providing Increased Display Flexibility, Ability to Measure Awkward Sized Conductors and Improved Wire Access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm Coil Diameter Allows Measurement in Tight Spaces
  • Ergonomic Design Allows Easy Operation with One Hand
  • 1.8 m (6 ft) Cable
  • Three-Year Warranty


Safety Conformance

  • IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V

DATASHEET

Hurry Up! Sold: 100/0 products in stock.

Specifications
  Range Resolution Accuracy
AC Current1 2500 A 0.1 A 3% ± 5 digits2
Frequency1 500 Hz 0.1 Hz 0.5% ± 5 digits
External magnetic field rejection
(with cable >10 cm from the coupling)		 40 dB
Inrush1 •
Safety rating CAT III 1000 V, CAT IV 600 V
1. When used with compatible Fluke meter. Accuracy stated includes probe and meter accuracy.
2. For position accuracy at non-optimum positions, see Position sensitivity specifications table “A”
Position Sensitivity Specifications
Distance from Optimum i2500-18 Additional iFlex® Error
A 1.4 in (35.6 mm) ±0.5%
B 2.0 in (50.8 mm) ±1.0%
C 2.5 in (63.5 mm) ±2.0%
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature.
