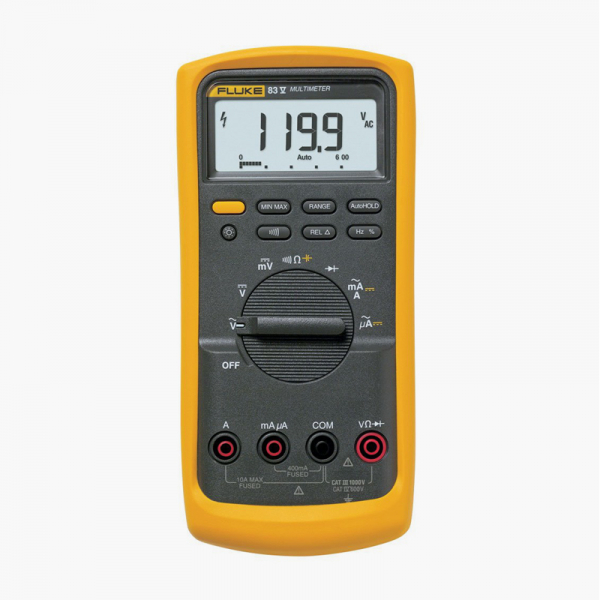

Fluke Average Responding Industrial Multimeter, 83-V-EUR

 ENVIRONMENT SPECIFICATION

 · Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks

 · Large digit display with bright, two-level backlight makes the 83V significantly easier to read than older models

 · 6000 counts, 3-3/4 digits

 · Measure up to 1000 V AC and DC

 · Measure up to 10 A, 20 A for up to 30 seconds

 · Frequency to 200 kHz and % duty cycle

 · Resistance, continuity and diode test

 · 10,000 µF capacitance range for components and motor caps

 · Min/Max-Average recording with Min/Max Alert to capture variations automatically

 · Relative mode to remove test lead interference from low ohms measurements

 · Auto and manual ranging for maximum flexibility

 · Touch Hold to capture stable readings avoiding noisy signals

 · Large display digits and two-level bright white backlight for increased visibility

 · Analog bargraph for fast changing or unstable signals

 · Input Alert provides audible warning against wrong use of input jacks

 · Improved selectable sleep mode for long battery life

 · Access door for fast battery changes without breaking the calibration seal

 · "Classic" design with new removable holster with built in test lead and probe storage

 · Lifetime warranty

 Operating temperature

 –20DegC to +55DegC

 Storage temperature

 –40DegC to +60DegC

 Humidity (without condensation)

 0% – 90% (0DegC – 35DegC)

 0% – 70% (35DegC – 55DegC)

 Operating altitude

 2000 m

Safety Specifications

 Overvoltage category

 EN 61010–1 to 1000 V CAT III, 600V CAT IV

 Mechanical and General Specifications

 Display

 Digital 6000 counts updates 4/sec

 Analog 32 segments, updates 40/sec

 Frequency

 19,999 counts, updates 3/sec at > 10 Hz

 Size

 201 x 98 x 52 mm (with holster)

 Weight

 355 g

 Weigh with holster and flex–stand

 624 g

 Warranty

 Lifetime

 Battery life

 Alkaline~400 hours typical, without backlight

 Industrial electricians around the world trust the Fluke 83V Industrial Multimeter from the control room to the plant floor.

 With its accuracy and troubleshooting capabilities, the Fluke 83V Industrial Multimeter works when you need it, even in loud, high-energy, and high-altitude locations.

 Weight :

 Dimension :

 Cable in one drum:

 Pallet weight :

 Total net weight including both :

 Warranty details : Lifetime Warranty
