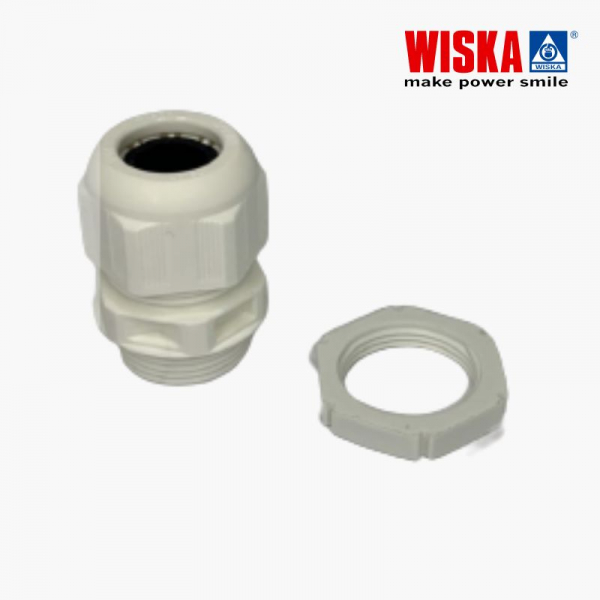

25MM FIRE ALARM CABLE GLAND WITH LOCKNUT, WHITE, IP68, CABLE RANGE: 9 - 17MM

0 Review
AED 3.68

Price inclusive of all taxes

Availability: In stock
SKU:
WISFGW25
  • Part Number:GLP25White
  • Cable Range:9-17MM
  • Size:25MM
  • Type: Fire Alarm Cable Gland With Locknut
  • Color: White
  • Rating: IP68
  • UOM: Numbers
  • Brand: Wiska

Hurry Up! Sold: -500/68883 products in stock.

Material cable gland Polyamide Material sealing gasket EPDM Temp. range min -40 °C Temp. range max 100 °C Protection class IP68 (5 bar 30 min), IP69 Thread type M Ø Connection thread D 25 Lead 1,5 Length screw-in thread L 10 mm Ø cable diameter min 9 mm Ø cable diameter max 17 mm Key width SW 29 mm Collar diameter (E) 32 mm Total length TL 38 mm - 47 mm Glow wire test 750 °C Type of cable anchorage A Install. torques fitting 10 N m Install. torques cap nut 4 N m Impact category 4 Product Color RAL 9010 Order no. RAL 3000 10106656 Type GLP25 White Packing unit 10 ETIM-Classification EC000441
